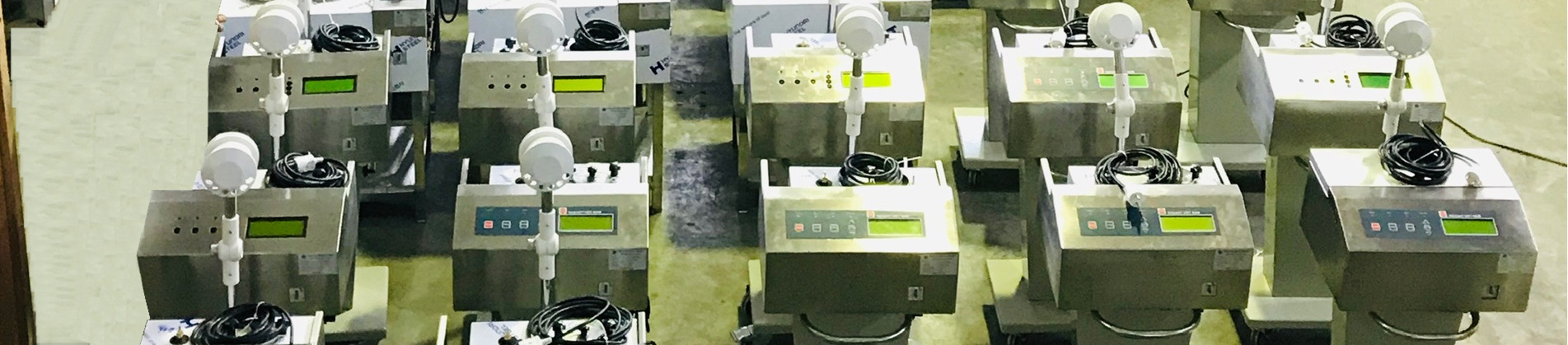

Traditional Medicine Fumigation Device

Applications

The Traditional Medicine Fumigation Device (also known as Chinese medicine fumigation machine) is designed and manufactured for the purpose of fumigating vapour medicine directly to some certain parts of the human body for treatment/therapy, especially joint and soft tissue diseases. It is a necessary device in Hospitals; Traditional Medicine Clinics; Health Facilities of Precinct and Commune...

Main features

Main features:
- Operation on principle of boiling, vaporizing, mist spraying.
- Control by a microprocessor controller. Control via its functional keys on the Control panel that mounted on the main unit.
- Digital Display for pre-set parameters, treatment parameters, alarms on the LCD Screen.
- Heat by electricity to create medicine vapour for fumigating each body part.
- Pre-setting parameters: Pre-setting up to 6 levels of preheating capacity, Preheating temperature and Therapeutic times.
- Therapeutic time setting adjust range: From 0 minute to 99 minutes. Therapeutic duration is counted down during therapy process.
- Therapeutic pause function available. When this function is activated the device pauses spraying and the countdown timer stops.
- With an audio notification function and status display on the LCD screen at the end of a therapy cycle.

Technical data

Model	XT-1
Style	Floor standing, moveable by 4 casters.
Effective capacity	1.8 Liters.
Device body (Upper part)	Outer shell of device body is made of SUS 304 stainless steel
Device body (Lower part)	Outer shell of device body is made of resin powder coated steel
Heating and vaporizing chamber	- Made of SUS 304 stainless steel with thickness of 3 mm, consisting of 2 compartments, and a SUS 304 stainless steel mesh net standing between 2 compartments. - Filter efficiency is 99.99%, able to remove out particles/objects of size ≥ 0.15 mm.
Water supply pipe	Supply water to the heating chamber through a circular hole of 8cm diameter. Water supply capacity for each therapy is ≤ 1.8 liters.
Heaters	To be cover by SUS 304 stainless steel, with capacity of 1500W..
Pre-set preheating capacity levels	6 levels consisting of 600W, 780W, 960W, 1140W, 1320W and 1500W.
Exhaust valve	To release liquid waste after each therapy.
Vapour pipe	Made of heat-resistant silicon pipe
Temperature sensor	Type PT 100, for monitoring and controlling temperature of the heating chamber.
Water level sensor	Yes, water level sensing element.
