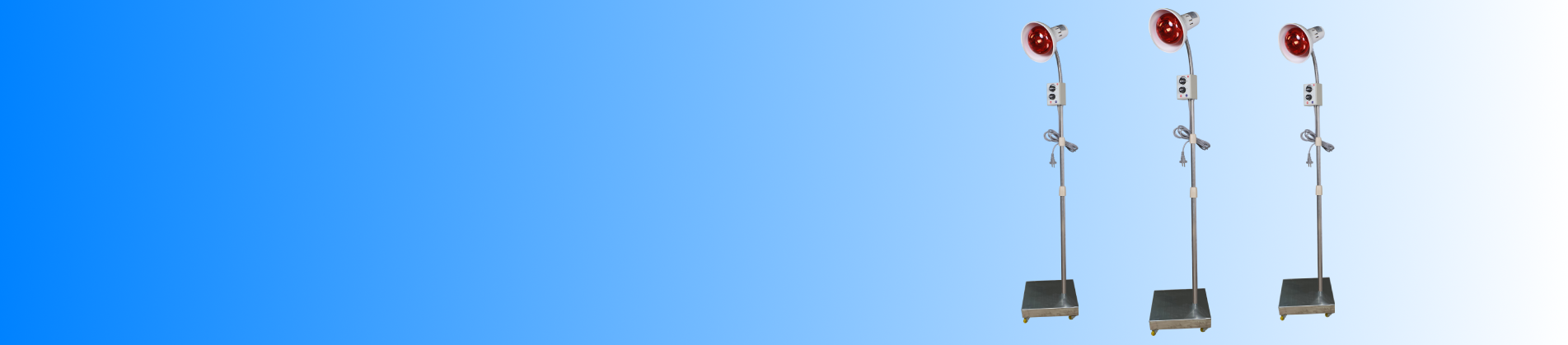

Therapeutic Infrared Lamp

Applications

Therapeutic Infrared Lamp, model: TIL-HA20 is designed and manufactured for the

purpose of:

- Specialized in the treatment of cases where local heat increase is required, increased local

nutritional retrienage, edema relief, muscle spasms reduction, pain relief, etc.

- Used in hospitals, therapeutic clinics, other medical facilities.

Main features

- Floor-to-floor type, moveable by the casters.
- Principle of operation: Use infrared therapy.
- The lampshade is made of metal.
- The lamp body is made of stainless steel tube, divided into 3 segments, with plastic lamp body joints that allows easy lifting or lowering.
- The heat-resistant E27 type lamp socket (bulb holder) can be used for a variety of bulbs.
- The lamp base is made of stainless steel, fitted with 4 pieces of all directions swivel casters.
- The lamp head can be adjusted up and down at an angle of about 30°.

- Timer with an optional timer range of up to 30 minutes, which allows it to automatically stop the treatment time without the intervention of the user, is very convenient to use.
- Control the lamp with just one hand by a switch located right on the lamp body. A dimmer switch helps to change the infrared energy to suit the therapeutic needs.

Technical data

Supply voltage: 220VAC/ 50Hz
Bulb capacity: 275W
Adjustable lamp body height: 1,0m - 1,7m
Adjustable angle of lamp head: About 30°
Timer range: 0 - 30 min
Operation environment: 5°C - 40°C; Humidity: 90% (Maximum)
