Steam Sterilizer, square door, microprocessor

Applications

Steam Autoclave is designed and manufactured for the purpose of sterilizing:

-Medical instruments, surgical instruments, medical supplies, medical materials, etc…

-Protective clothes, caps, gloves, mask, etc for medical doctors, medical staffs and patient, etc…

-Instrument, materials for test, experiment in laboratory…

-Liquid in medicine, test, experimental laboratory… in both wrapped and unwrapped types.

Main features

- Operating by a high precision multifunctional microprocessor controller, user interface via LCD display and keypad.
- Automatic operations from start to end of sterilizing cycle: water supply – pre vacuum – heating – sterilizing – ventilation – post vacuum drying – air balance – finish (end cycle).
- Sterilant: Saturated steam at high temperature.
- Equipped with PT 100 sensor to monitor temperature of the sterilization chamber.
- Display on LCD display for: Name of phases of the sterilization cycle. Chart of phases of the sterilization cycle. Pre-set temperature and actually operating temprature. Pre-set time (sterilization, dry) and remaining time.
- Actual sterilization pressure in the process of operation is indicated in pressure gauge.
- Alarms by signal lights and display alarm message on LCD display.
- Equipped with door locking system and protection function for temperature, pressure, sensor, control signal, water level, electric current, etc…

Technical data

Model	HA-150L HA-150DR	HA-200L HA-200DR	HA-250L HA-250DR	HA-300L HA-300DR	HA-350L HA-350DR	HA-400L HA-400DR	HA-500L HA-500DR	HA-600L HA-600DR
Type	Floor Standing. Hinged Square Door, Swing out, Horizontal Opening. Single Door and Double Door available to choose.
Chamber	Horizontal Square Cube Type
Volume	150 litre	200 litre	250litre	300 litre	350 litre	400 litre	500 litre	600 litre
Temp. & Time Controller	Fully Automatic Microprocessor Controller.
Programs	5 Pre-set Sterilization Programs (for wrapped articles, un-wrapped articles, liquid), 1 Program reserves for the user himself set-up and 1 Warm up Program. 1 Leakage Test Program and 1 Bowie – Dick Test Program. Expansion of up to 15 programs is available.
Sterilization Temp. Setting Range	105°C ÷ 135°C
Sterilization Pressure Range	0.5 ÷ 2.3 kg/cm² (equivalent to 0.49 bar – 2.256 bar).
Sterilization Time Setting Range	1 ÷ 180 minutes. Setting scale: 1 minute.
Drying Time Setting Range	0 ÷ 180 minutes. Setting scale: 1 minute
Drying Method	Electric (Model: HA-xxxL) Vacuum Pump (Model: HA-xxxDR)

Catalogue/Brochure

** Please do not hesitate to contact us for more informations

Steam Sterilizer, square door, microprocessor

Applications

Main features

Technical data

Catalogue/Brochure

Other products

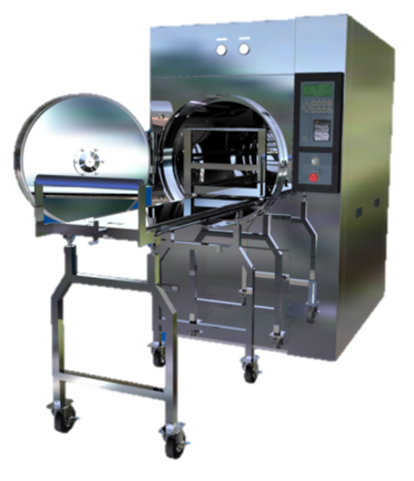

Steam Sterilizer, circular door, microprocessor
